Shut out polluted air such as Pollen, PM2.5, Haze etc!
- 95% efficiency against 0.3μm size of particulate
- Energy saving performance Only JPY9.5円 ※ for 24 hours operation.
- Strong sucking power No filter clogging!
- Washable and reusable Environmentally friendly.
- This product is a filtering system for the outdoor air intake by Electronic Air Cleaner.
- PM2.5 particles are air pollutants with a diameter of 2.5 micrometers or less.
- Removal of particles with its diameter smaller than 0.3 micrometers are not confirmed yet for this system.
Wall mount Switch
- For safety feature, the electricity to this equipment will be shut off if the proper after-service is not prosecuted one year after operation / after-service.
- Do NOT turn off this equipment except after-service, typhoon, snowstorm, thick hog etc.

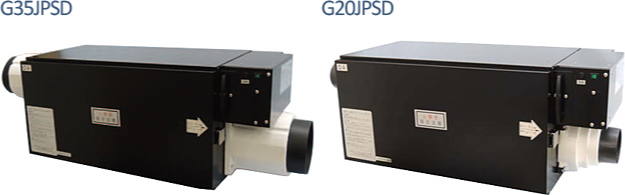

| Model no. | G20JPSD | G35JPSD | |
|---|---|---|---|
| SA duct | Φ100, Φ125×1pc | φ150×1pc | |
| OA duct | Φ100, Φ125×1pc | φ150×1pc | |
| External Dimensions | Width | 960mm | 798mm |
| Depth | 362mm | ||
| Height | 346mm | ||
| Weight | Approx. 26kg | ||
| Power Supply | AC100V 50/60Hz | ||
| Power Consumption | 11W | ||
| Noise level | near silence | ||
| Ozone generation | Below 0.05ppm | ||
| Pre-filter | SUS24 mesh | ||
| Switch Display | Operation：Green/ Alarm：Red(Green off) Timer：Red and Green On (12〜13 months operation) Timer ：Red On (Green off) (after 13 months operation) |
||
| Safety Feature | Interlock switch Abnormal current and abnormal voltage detecting device,Residual electric charge discharge device |
||
